XD-CNC20 CNC Spring Making Machine To Make Various Springs Within 0.2 To 2.3mm

Brand Name : Xinding

Model Number : XD-CNC20

Certification : CE / ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 30 sets per month

Delivery Time : 20 work days

Packaging Details : Wooden case

Price : Negotiable

Axis Count : 3 Axis

Wire Diameter : Φ0.2 - 2.3mm

Controller : Taiwai Yitu

Servo Brand : Sanyo Denki

Optional : Spinner

Machine Color : Blue painting

Weight : 900kg

Power AC : 3P~380V 50Hz

Package : Wooden Case

Dimention(L*W*H) : 1500*1100*1700mm

Contact Now



Product Introduce

  XD-CNC20 CNC Spring Making Machine is applied wire diameter from 0.2mm to 2.3mm and mainly suitabel for manufacturing various precision springs, such as compression springs, extension springs, torsional springs, shaped springs, wire forming and other products. It has entirely equiped with four servo motors to drive, including one serov motor for wire feeding, one servo motor for cam moving, one servo motor for quill rotating and the other is for spinner turning. Among them, the fourth axis controls the spinner turning is an optional device and needs to order separately. This machine is widely applied in the industrial field and great recognized and favored by thousands of springs manufacturers at home and aboard.



Machine Feature

It can stably manufacture various precision springs, such as compression springs, tension springs, shaped springs, wire drawing and other products.

 It adopts Janpanese Sanyo Denki servo motor and Taiwan Yitu computer controller, ensuring stable operation.

It has totally equiped with four axis, that is, Y-axis, X-axis, Z-axis and U-axis (optional accessory). It can produce the accurate size and complex spring if adds the U-axis (spinner).

◇ Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor aganist overheating.

◇ Computer can atuomatically decelerate according to the timing when the probe should be used.

Production speed can be increased or decreased at any time runnung the machine.

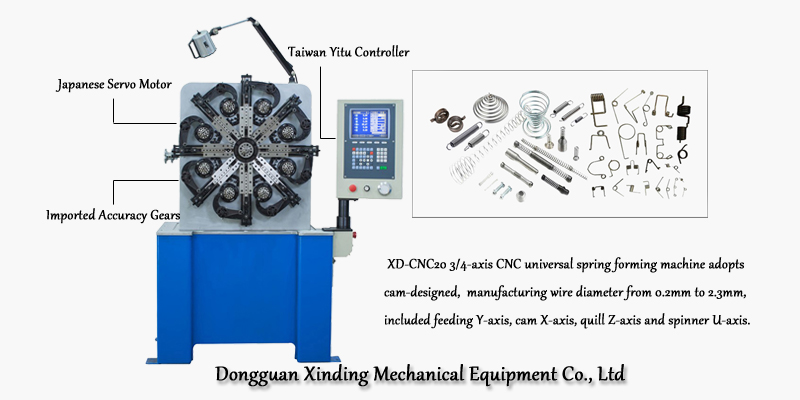

Sample Of Springs

XD-CNC20 CNC Spring Making Machine To Make Various Springs Within 0.2 To 2.3mm

Technical Parameter

1        Model        XD-CNC20
2        Axis Count        3 axis
3        Wire Diameter        φ0.2~2.3 mm
4        Outside Diameter        φ40mm
5        Max.Production Rate        100pcs/min
6        Feeding Length        Unlimited
7        Cam Running Speed        0~100rpm
8        Feeding Roller Pairs        2 pairs
9        Feeding Servo Motor        2.7kw ( Y-axis )
10        Cam Servo Motor        2.7kw ( X-axis )
11        Quill Servo Motor        0.75kw ( Z-axis )
12        Spinner Servo Motor        0.75kw ( U-axis, Order separately )
13        Computer Display        Chinese & English
14        Storage Capacity        0~999 programs
15        Cam Setting Value        X: 0.1-359.9°
16        Feeding Setting Value        Y: 0.01-9999.99mm
17        Package        Wooden Case
18        Dimension( L*W*H )        1500*1100*1700mm
19        Weight        900kg
20        Power AC        3P~380V  50/60hz

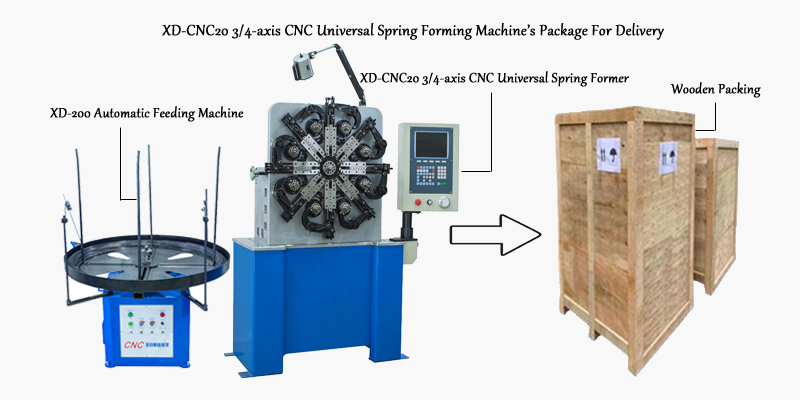

Machine Package

XD-CNC20 CNC Spring Making Machine To Make Various Springs Within 0.2 To 2.3mm

Our Advantages

Our company has been focusing on the field of spring making machine for over 20 years and has rich technical experience. At the same time, we focus on technological innovation and personnel training, and have our own professional R & D, sales and service teams.

Company's the Founder Mr Bai has witnessed the Spring Industry development in China, and committed to improving user experience and continuously improving machine quality.

The company's philosophy is "Quality Priority, Customers First, Keeping Improving", not only just a slogan, but also put into practice.

Our company's products are great recogized and favored by thousands of spring makers all over the world. Our main market as following:

    Europe (UK, France, Germany, Italy, Sweden, Romania, Poland, Estonia, Russia, Ukraine, Bulgaria)
    Africa (South Africa, Egypt, Ethiopia, Nigeria, Tunisia)
    Asia (Korea, India, Vietnam, Philippines, Singapore, Indonesia, Malaysia, Iran, Thailand, Turkey)
    South America (Argentina, Brazil, Chile, Peru, Ecuador, Colombia)

    North America (America, Canada, Cuba, Mexico,Costa Rica)

We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.



Company Philosophy

  Dongguan Xinding Mechanical Equipment Co., Ltd specialized in manufacturing and supplying CNC spring making machines for over 20 years, we founded on the belife of "Professional, Innovation, Quality and Service". With the know-how and wisdom, we introduce series of efficient CNC spring making machine and we have been serving thousands of spring manufacturing enterprises. Undoubtedly, we have earned the appreciation from leading domestic and international spring makers.
  Customer requires, XinDing aims. We will always be at your service.
  It's easy to find suppliers in China, but it is not easy to find a professional supplier such as Xinding. If the above products are just what you have been looking for, or you are interested in our other products, please do not hesitate to contact us. We will be happy to provide you with quality service, and your satisfaction is our constant pursuit.
